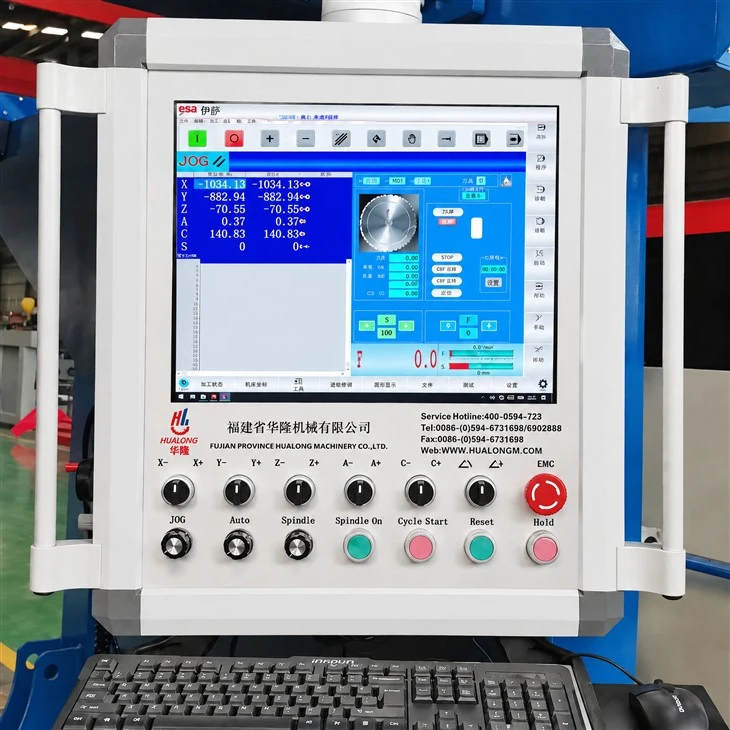

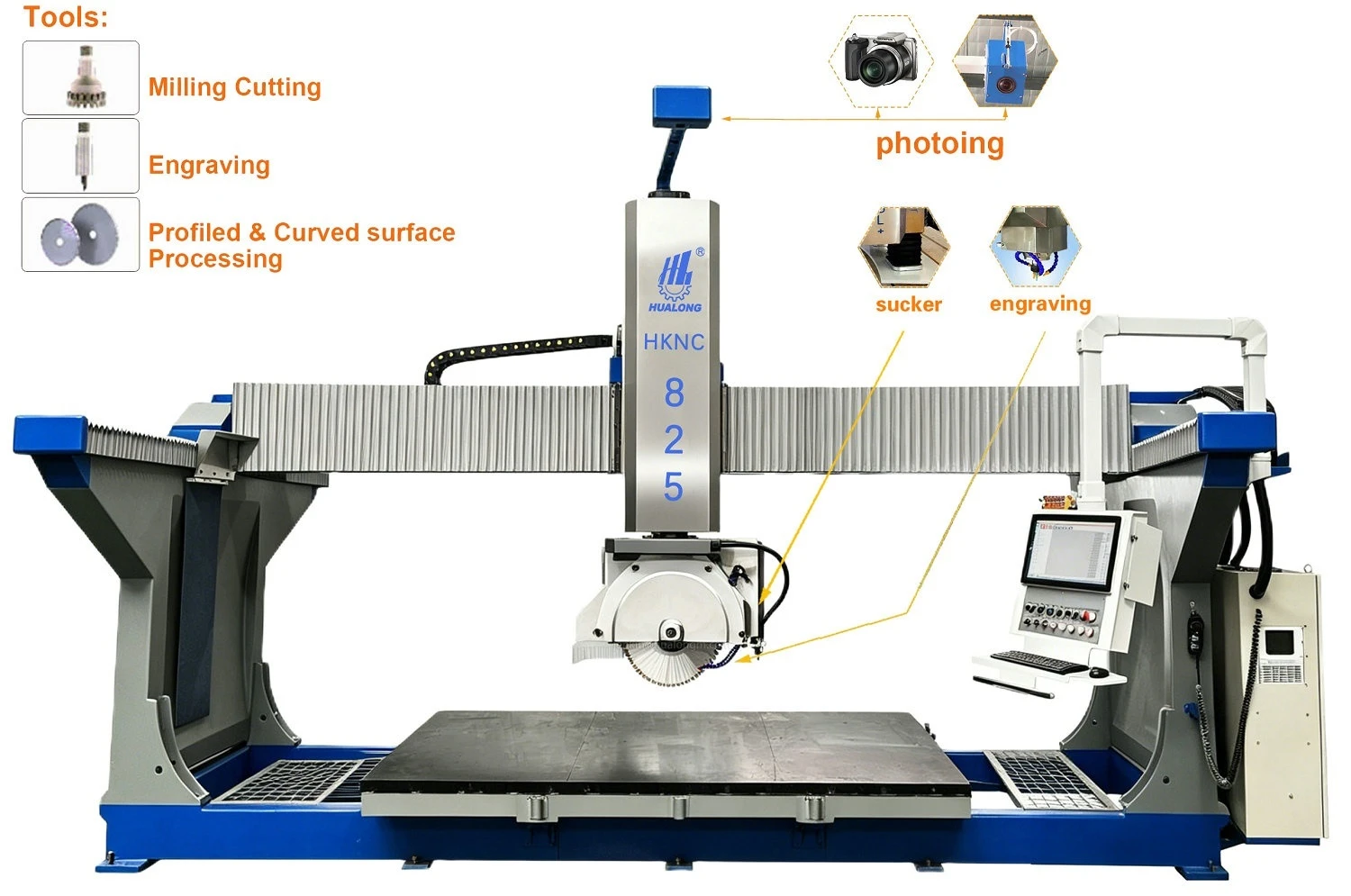

The Hualong HKNC-825 Plus is a 5+1 axis CNC bridge saw designed for stone workshops that handle thick slabs, shaped components and detailed cutting work. With a 500 mm saw blade, a maximum cutting thickness of 280 mm and a 5.5 kW retractable electric spindle, the machine combines multi-angle saw cutting with additional milling operations in one working area.Its five-axis interpolated control system allows the cutting head to rotate through 360° and tilt from 0° to 90°, supporting straight cuts, bevel cuts and more complex cutting paths. The electric spindle provides a separate tool for milling-related work, while the vision-assisted layout function helps operators arrange cutting patterns according to the stone material and job requirements.The HKNC-825 Plus is specifically designed for granite, marble, and other natural stones; it is well-suited for workshops that produce countertops, shaped stone components, decorative elements, and custom stone products.
2.Technical Specifications:
| Item | Specification |
|---|---|
| Model | HKNC-825 Plus |
| Machine type | 5+1 Axis CNC Bridge Saw |
| Saw blade diameter | Ø500 mm |
| Working platform | 3500 × 2100 mm |
| Max. horizontal cutting length | 3500 mm |
| Max. cutting thickness | 280 mm |
| Max. lifting stroke | 550 mm |
| Main motor power | 26.4 kW |
| Retractable electric spindle power | 5.5 kW |
| Cutter-frame reciprocating motor | 1.6 kW |
| Crossbeam shifting motor | 1.3 kW |
| Hydraulic station motor | 2.2 kW |
| Lifting motor | 1.3 kW |
| Gross power | 40.3 kW |
| Water consumption | 2 m³/h |
| Machine dimensions (L × W × H) | 6800 × 3400 × 3900 mm |
| Gross weight | 7200 kg |

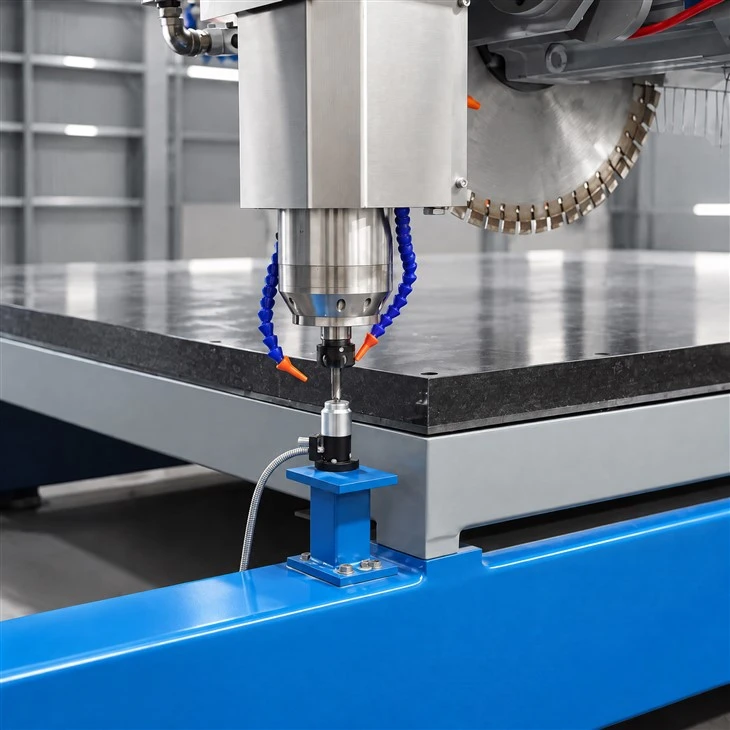

| Tool-setting device | Optional |
3.Production Capacity and Operating Cost:
Using a 3500 × 2100 × 20 mm slab to produce 3000 × 600 mm countertop blanks, one slab can theoretically yield 3 pieces.Based on an estimated 24-minute cycle:- Daily output: Approximately 20 slabs or 60 pieces per 8-hour shift.
- Monthly output: Approximately 520 slabs or 1,560 pieces over 26 working days.
- Estimated cost per slab: US$0.90 for electricity and US$8.88 for labor.
- Combined cost: Approximately US$9.78 per slab, or US$3.26 per piece.
4.Investment and Payback:
With an estimated machine price of US$55,000, the potential payback period depends on additional monthly net profit.| Additional monthly net profit | Estimated payback |
|---|---|
| US$2,000 | 27.5 months |
| US$3,000 | 18.3 months |
| US$4,000 | 13.8 months |
| US$5,000 | 11 months |
These are illustrative calculations, not guaranteed results. Actual payback depends on order volume, machine utilization, and operating expenses.5.Why Choose the HKNC-825 Plus?
- Five-axis cutting: Handles complex multi-angle cutting beyond standard vertical and 45° bevel cuts.

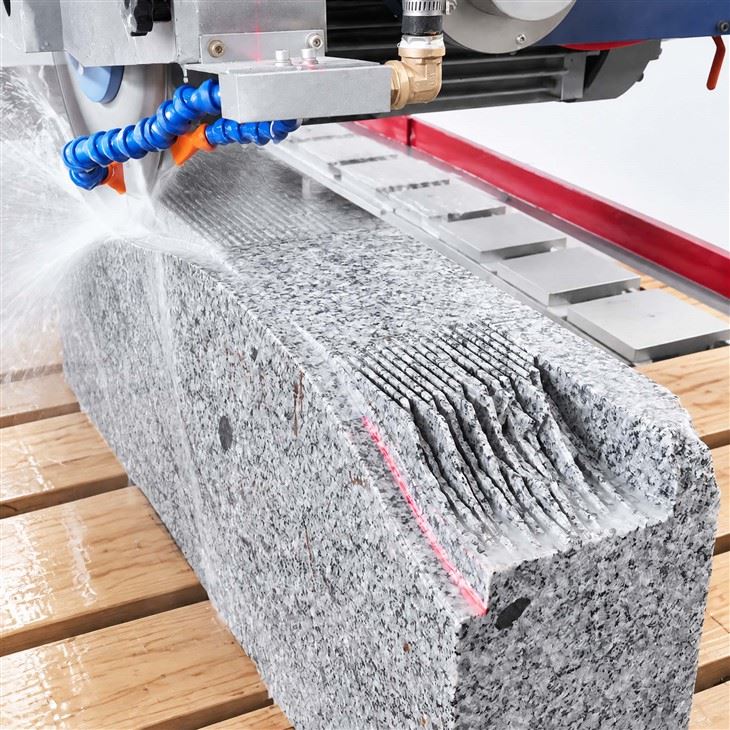

- Thick material processing: Supports a maximum cutting thickness of 280 mm and a maximum lifting stroke of 550 mm.
- Additional machining: The 5.5 kW retractable electric spindle supports milling and other compatible machining operations.
- Flexible production: Combines cutting and spindle machining in one machine, reducing the need to transfer workpieces between separate machines.
6.Applications:

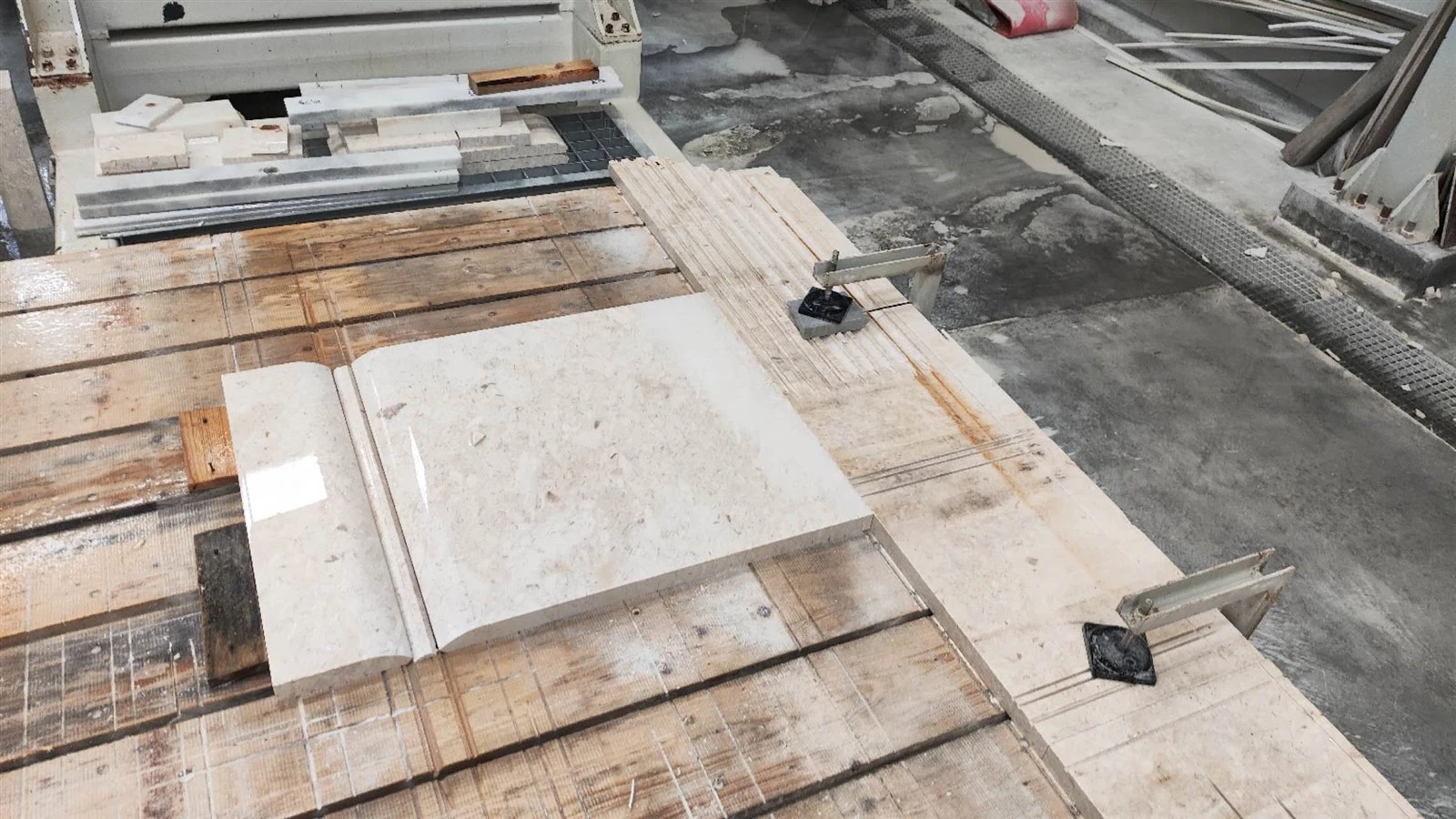

The HKNC-825 Plus can be configured for a range of natural-stone processing jobs, including:- Kitchen countertops: Straight cutting, bevel edges, sink openings and compatible milling details.
- Bathroom vanity tops: Custom outlines, cutouts and shaped edge processing.
- Thick stone components: Cutting workpieces within the machine's specified thickness and travel limits.

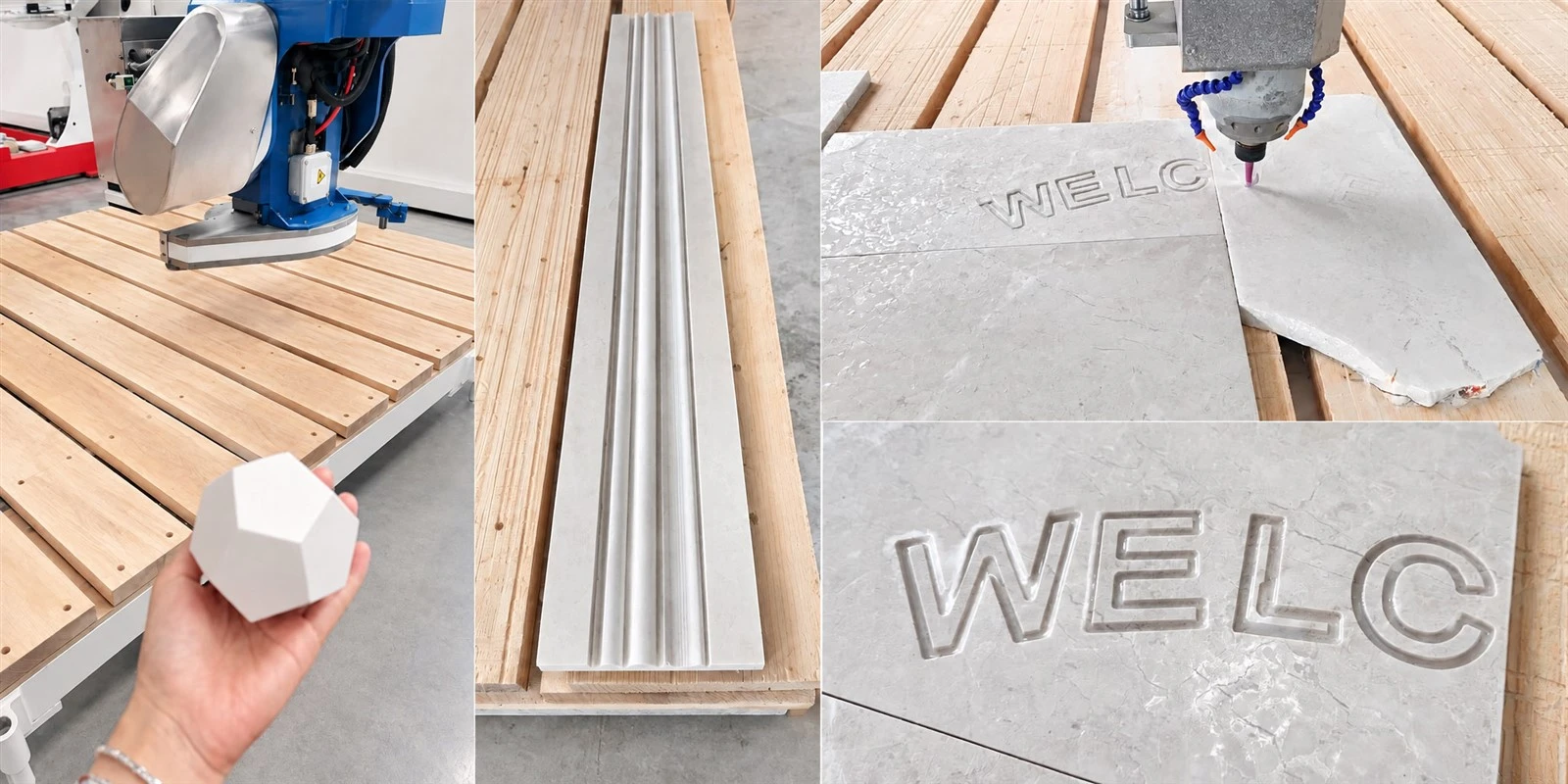

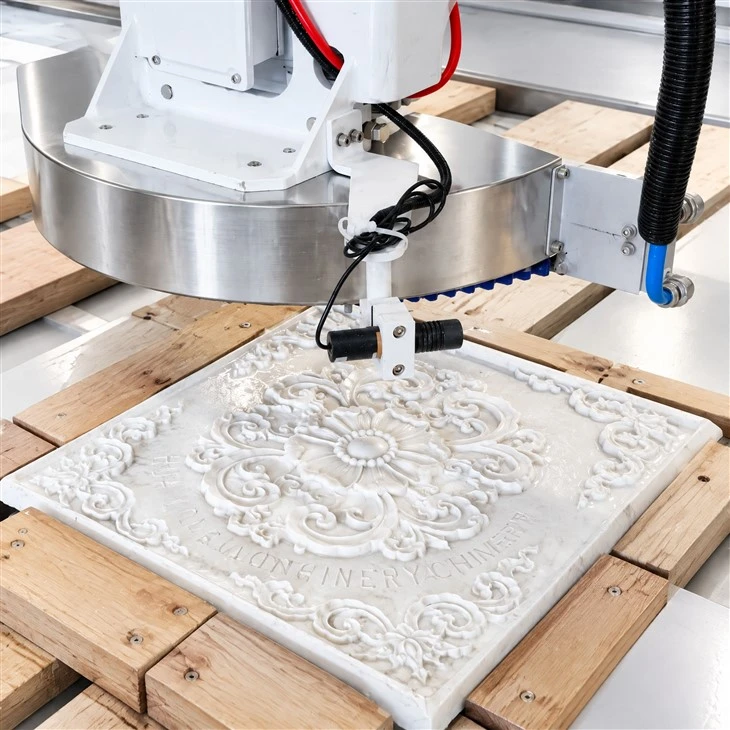

- Decorative stone products: Multi-angle cutting and selected shaped parts.
- Architectural stonework: Custom stone components that require programmed cutting paths.
- Granite and marble fabrication: Cutting and suitable milling operations selected according to material and tooling.

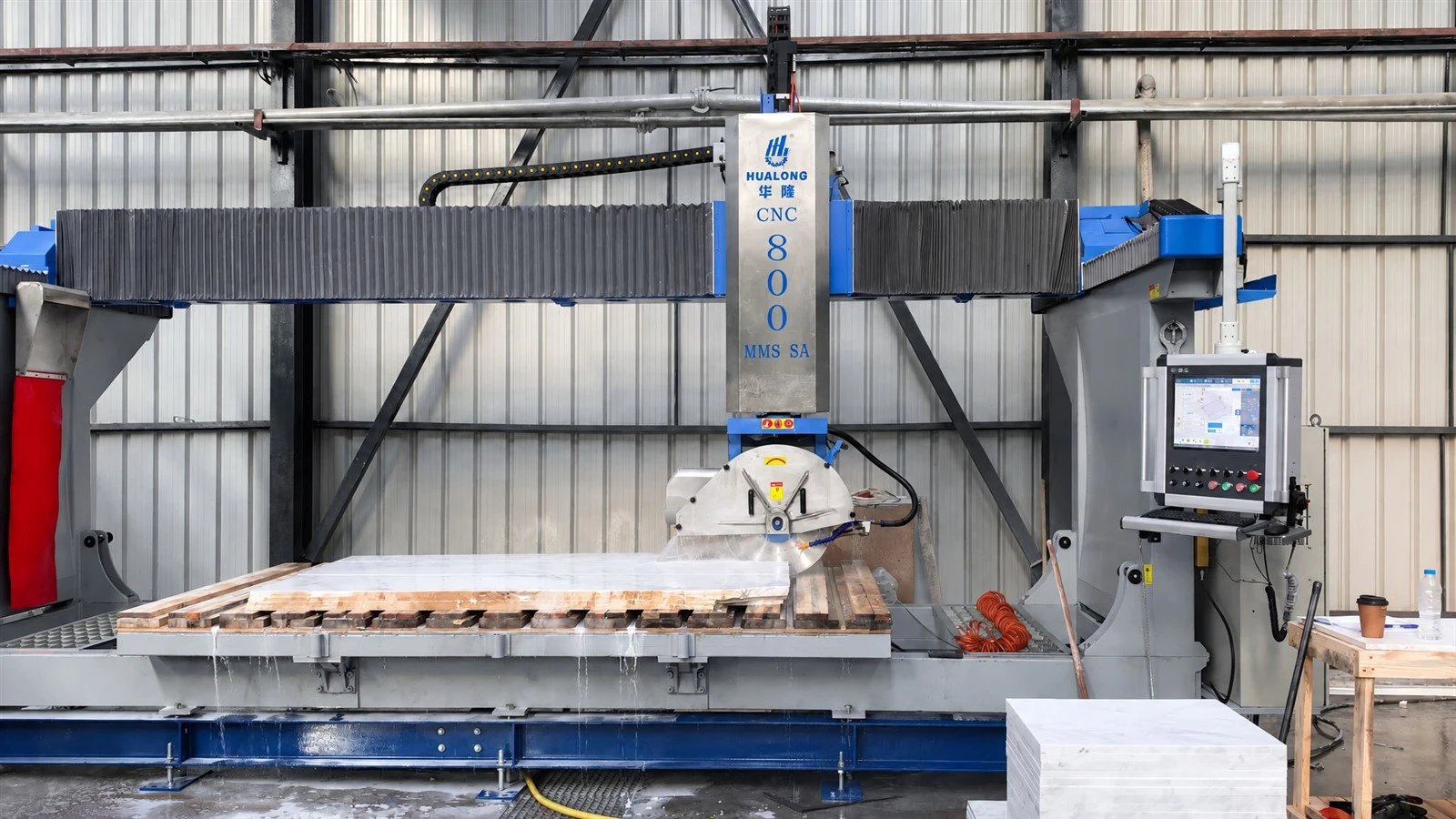

7.Machine on site:
8.Frequently Asked Questions:
Q1:What is the maximum stone thickness the HKNC-825 Plus can cut?
The listed maximum cutting thickness is 280 mm. The achievable result also depends on the stone material, blade selection and cutting conditions.Q2:Can the machine perform 45° bevel cutting?
Yes. The cutting head tilts from 0° to 90°, supporting 45° bevel cutting and other programmed angles within its operating range.Q3:What is the purpose of the electric spindle?

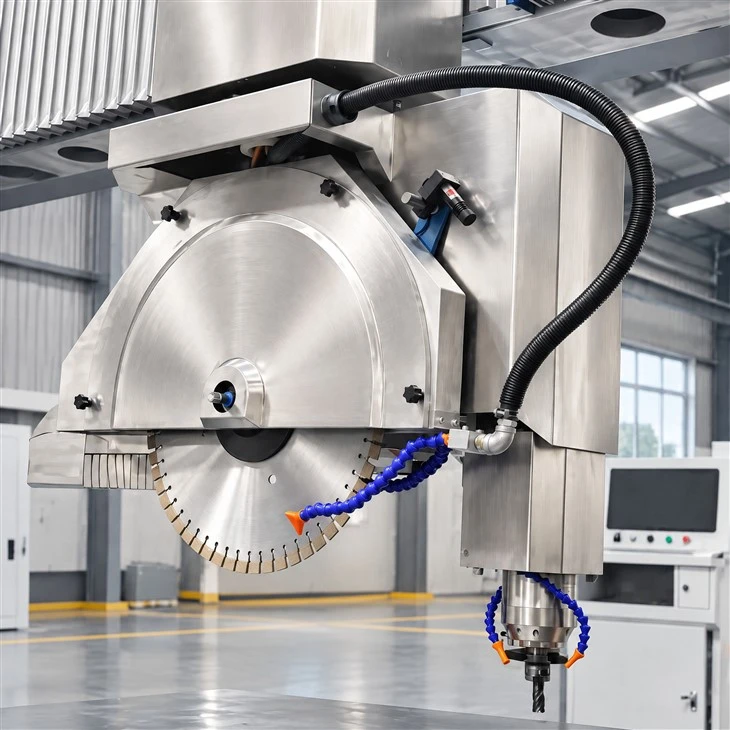

The 5.5 kW retractable electric spindle is intended for compatible milling operations, such as sink openings and selected shaped features. The appropriate tool must be selected for each task.Q4:Does the machine support both cutting and milling?
Yes. The saw blade handles cutting, while the separate electric spindle provides additional milling capability. The supported operations depend on the installed tools and CNC program.Q5:Which stone materials can it process?
The machine is designed for granite, marble and other stone materials. Blade and tool selection should match the material and the required finish.Q6:What is the working platform size?
The listed working platform measures 3500 × 2100 mm. Workpiece size and positioning must also remain within the machine's effective processing range.Q7:Is the tool-setting device included as standard?
The brochure lists the tool-setting device as optional. Confirm its inclusion when requesting a quotation.Q8:Can the machine help optimize slab usage?
Its vision-assisted photo layout function helps operators prepare cutting layouts. Material utilization varies with slab quality, part shapes and the nesting plan.Q9:What should buyers prepare before requesting a quotation?
Provide the stone type, maximum thickness, sample drawings, required cutting angles, milling requirements and expected production volume. These details help Hualong evaluate the appropriate configuration.Q10:What information is needed to plan installation?
Workshop dimensions, power supply, water arrangements, material-handling equipment and site access should be reviewed before installation. The final requirements should be confirmed with Hualong's technical team.
