Fujian Province Hualong Machinery Co., Ltd. is one of the leading manufacturers and suppliers of granite bridge saw in China. With abundant experience, we warmly welcome you to buy advanced granite bridge saw for sale here from our factory. Quality products and reasonable price are available.

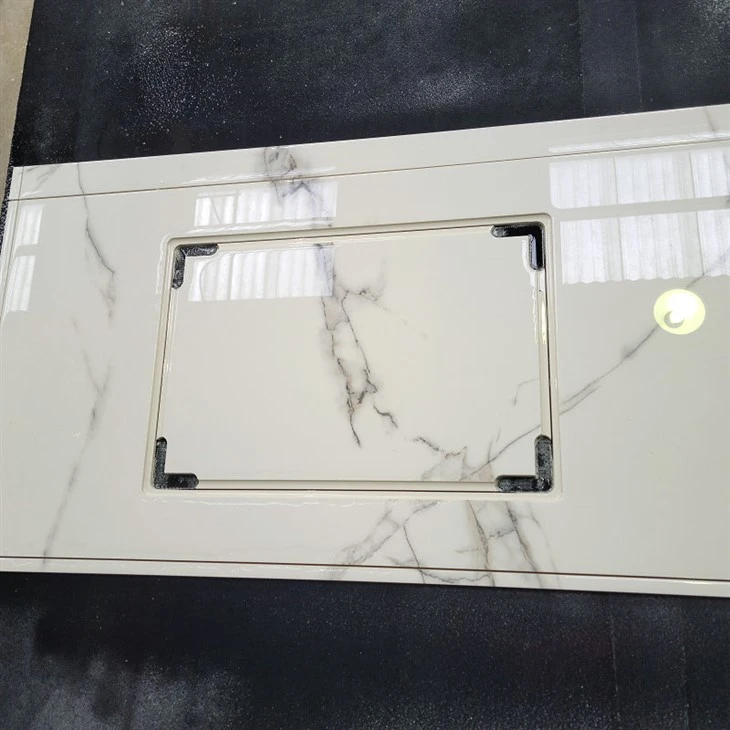

A single countertop may require multiple processes, including grooving, curved cutting, edge shaping, and surface engraving. Customers often have irregular contours requiring processing. Therefore, traditional bridge stone cutting machines can not handle these tasks.

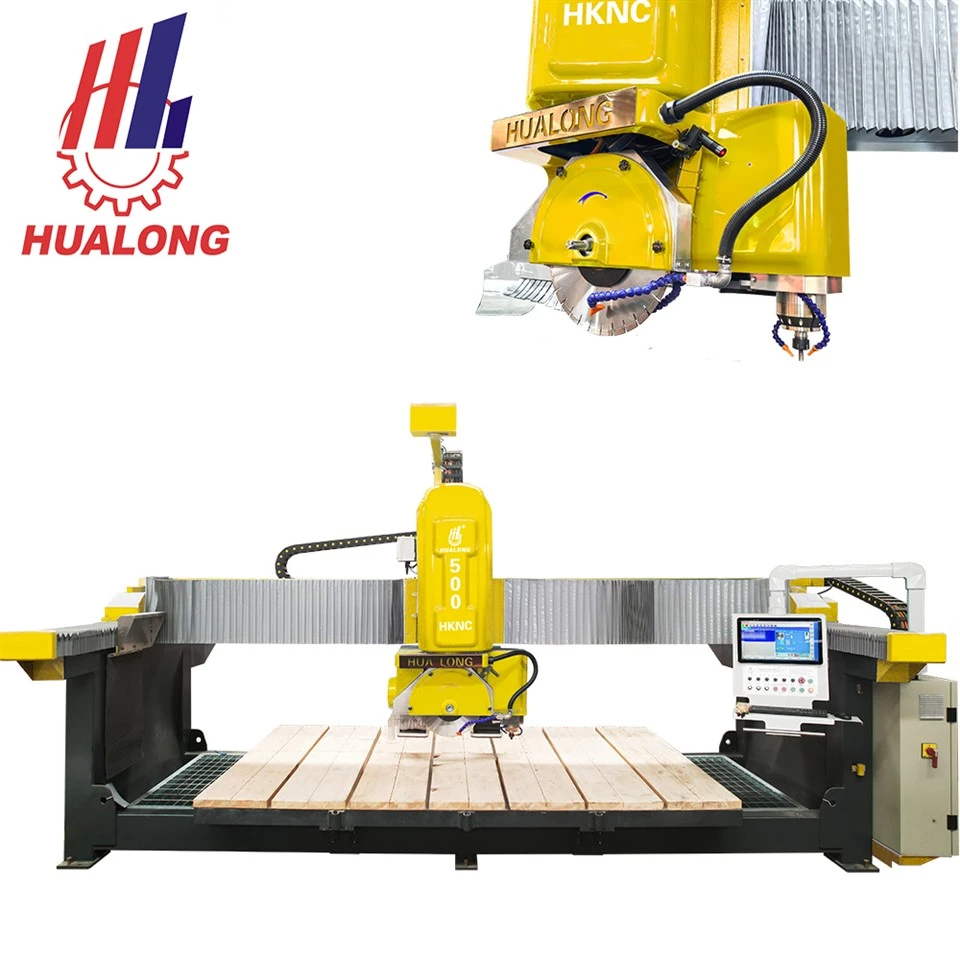

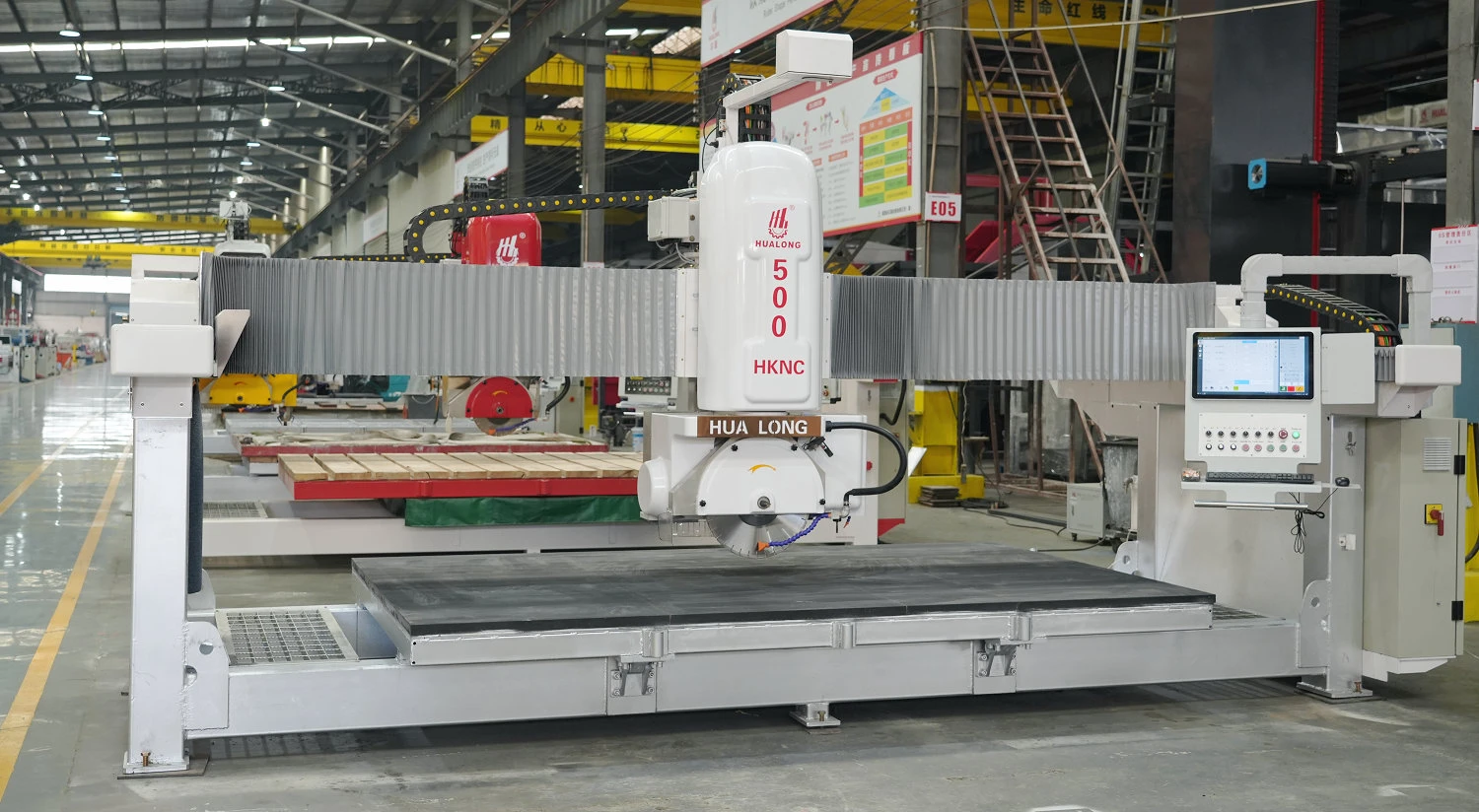

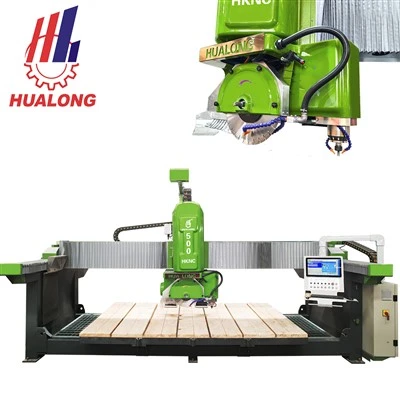

The HKNC-500PLUS integrates cutting, shaping, and engraving functions into a single 5 axis CNC stone machine.It is specifically designed for stone factories requiring customized production.
Depending on the cutting tools and processing requirements, the HKNC-500PLUS can process marble, granite, quartzite, artificial stone, and other types of stone.
From Digital Drawings to Finished Stone
The required shape for cutting is drawn using CAD/CAM software. The processing path is then generated based on the actual cutting requirements.
After placing the stone in the work area, the CNC system completes all processing work according to the pre-set path.
The specific workflow is as follows:
Drawing
CAD/CAM Programming
Stone Positioning
CNC Cutting
Shaping/Milling
Engraving
Finished Product
The advantage of this process is that the operator does not need to manually mark the stone. For recurring orders, the same program can be used to begin processing the stone.

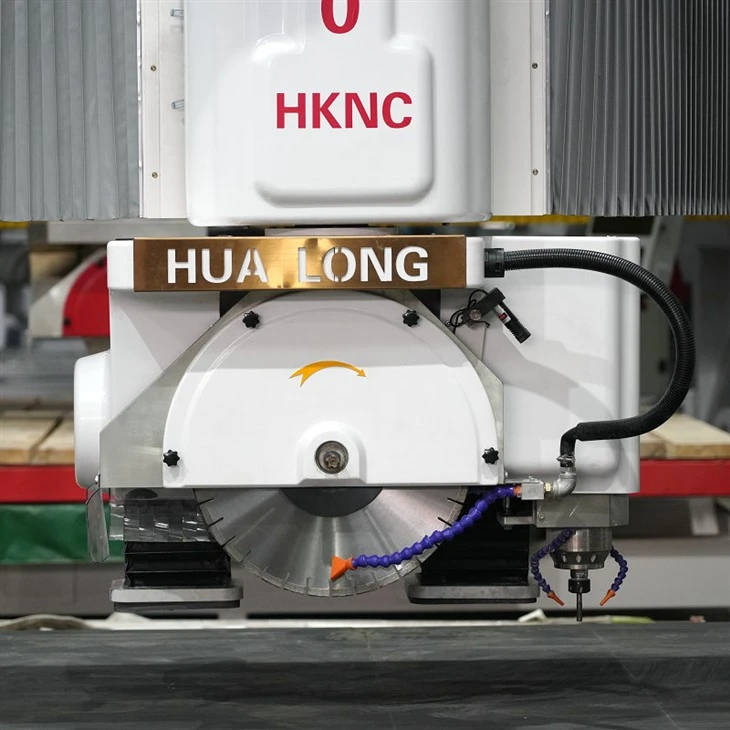

It can simultaneously control three linear axes (X, Y, Z) and two rotary axes (A, C). The saw head can rotate 0-360 degrees and tilt up to 90 degrees.

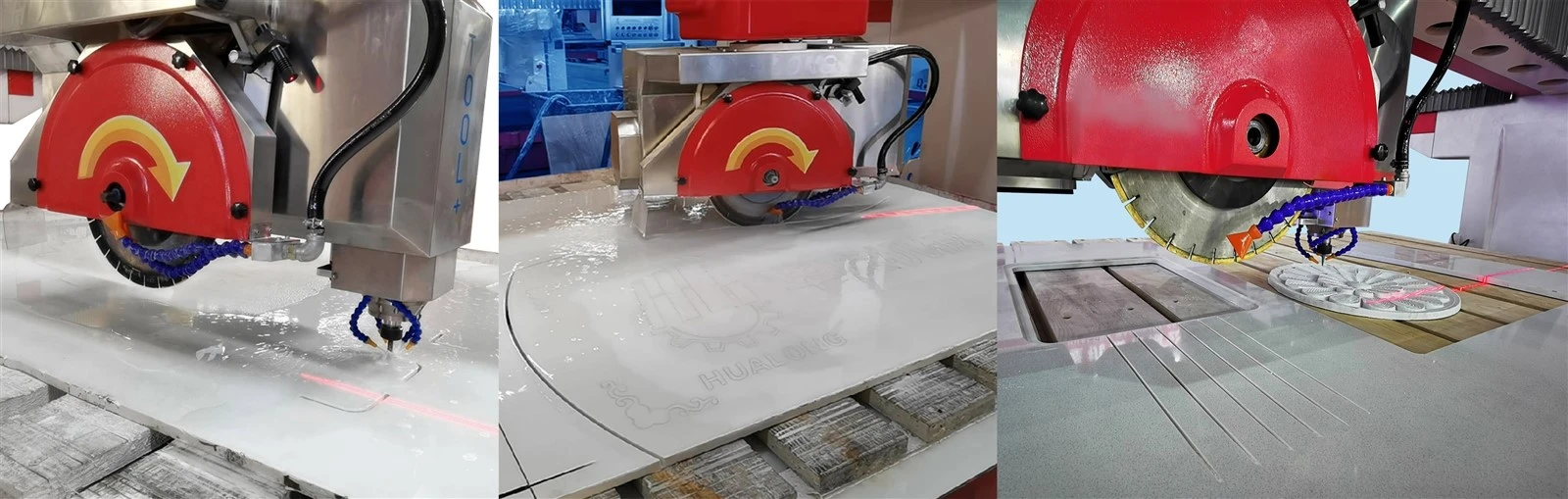

It can perform straight cutting, beveling, angled cutting, chamfering, and contouring within the same program.

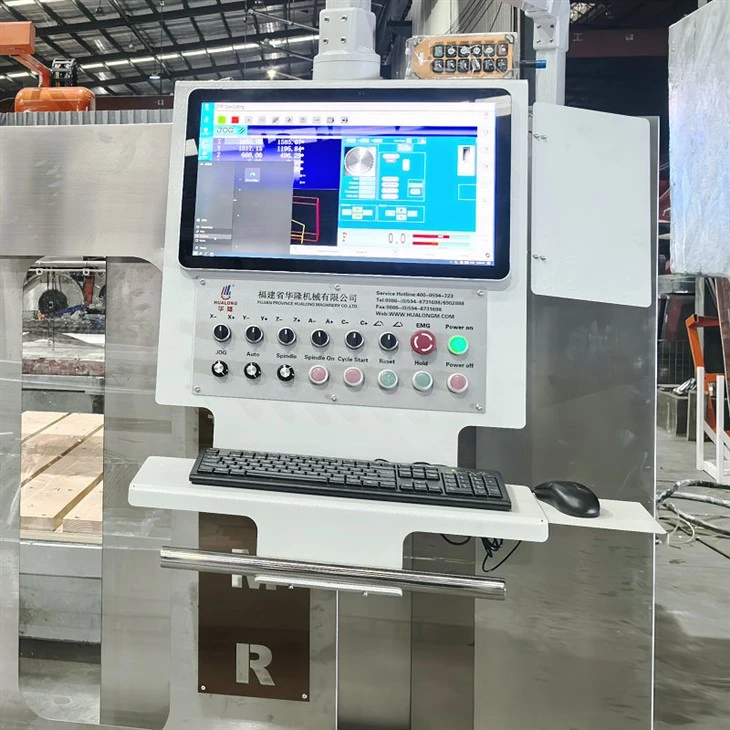

Equipped with an Italian ESA CNC system and a 21.5-inch color touchscreen. The machine setup is simple, and the entire machining process is automated. Even complex machining tasks can be completed efficiently and smoothly without interruption.
ESA permanent magnet brushless servo motors with integrated drivers provide powerful and stable power to the X, Y, Z, and C axes.
Simple interface with low learning curve. Fully integrated 2D/3D CAD support. Excellent file compatibility
The worktable can tilt up to 85 degrees, allowing for easy and safe loading of large, heavy stone slabs without the need for multiple operators.
The crossbeam and guide rails utilize high-quality components from renowned brands, ensuring high-precision cutting and a long service life.
Equipped with electrical components from brands such as ESA, Schneider Electric, and Sanch, ensuring stable and reliable machine performance.
Even after years of use, the structure will not deform, ensuring cutting accuracy.
Optional
The following modules add specific functions based on the products produced in the workshop:
Texture Matching:
Aligns the stone texture and color at the joints on the screen before cutting. Suitable for high-end countertops and matching panels.
Slab Imaging System:
Captures photos of the actual slab, corrects lens distortion, and automatically identifies cracks before cutting.
Vacuum Suction Cup:
Safely removes finished parts from the worktable without manual handling.
Slab Thickness Detector:
Automatically measures the actual slab thickness to ensure the program cuts to the correct depth.
5.5 kW High-Speed Engraving Spindle:
Its maximum speed is 24,000 rpm. It can be used for 2D engraving, lettering, and fine curve milling.
Blade Pre-Adjustment Unit:
Automatically measures blade and tool dimensions to compensate for wear during the program.
Rubber Work Platform:
The soft surface protects the stone during processing.
Galvanized frame:
It will not rust even when used in a damp workshop for 5-10 years.
How to Choose the Right Configuration
The selection of the HKNC-500PLUS should be based on the actual products the machine will be processing.
Before providing a quote, customers should provide the following information:
Product Drawings:Used to determine the required cutting and processing paths.
Stone Material:Different materials may require different cutting tools and processing parameters.
Maximum Processing Size:Used to determine the appropriate machine configuration.
Required Functions:For example, cutting only, cutting + shaping, or cutting + shaping + engraving.
Production Capacity:Used to assess whether additional material handling or automation options are needed.
Finished Product Samples:Photographs or physical samples help the Hualong technical team understand the actual processing requirements.
This information helps in configuring the machine according to the customer's production situation, rather than simply providing a standard machine.
Customized Production Configuration
Please provide drawings of your most frequently used processes, daily stone slab processing volume, and workshop dimensions. We will customize the configuration based on your actual workload, rather than using a generic standard solution.
- Get Customized Configuration and Quote
- Send Drawings for Process Flow Review
- Schedule an On-Site Demonstration to See the Machine Operation
- Request to Use Your Own Materials for Sample Cutting
