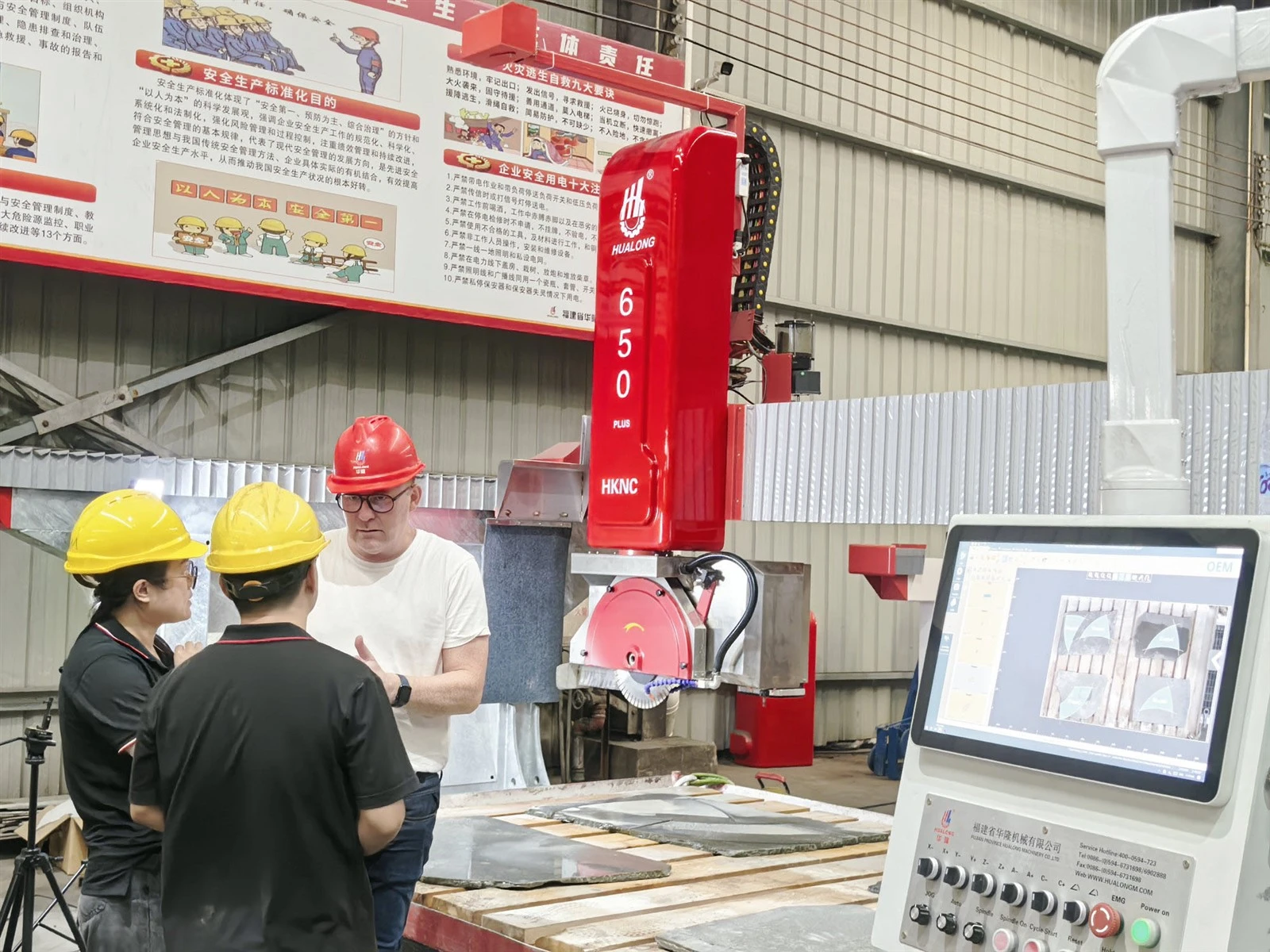

Automatic Bridge Saw

Fujian Province Hualong Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic bridge saw in China. With abundant experience, we warmly welcome you to buy advanced automatic bridge saw for sale here from our factory. Quality products and reasonable price are available.







1. Imported CNC Control System

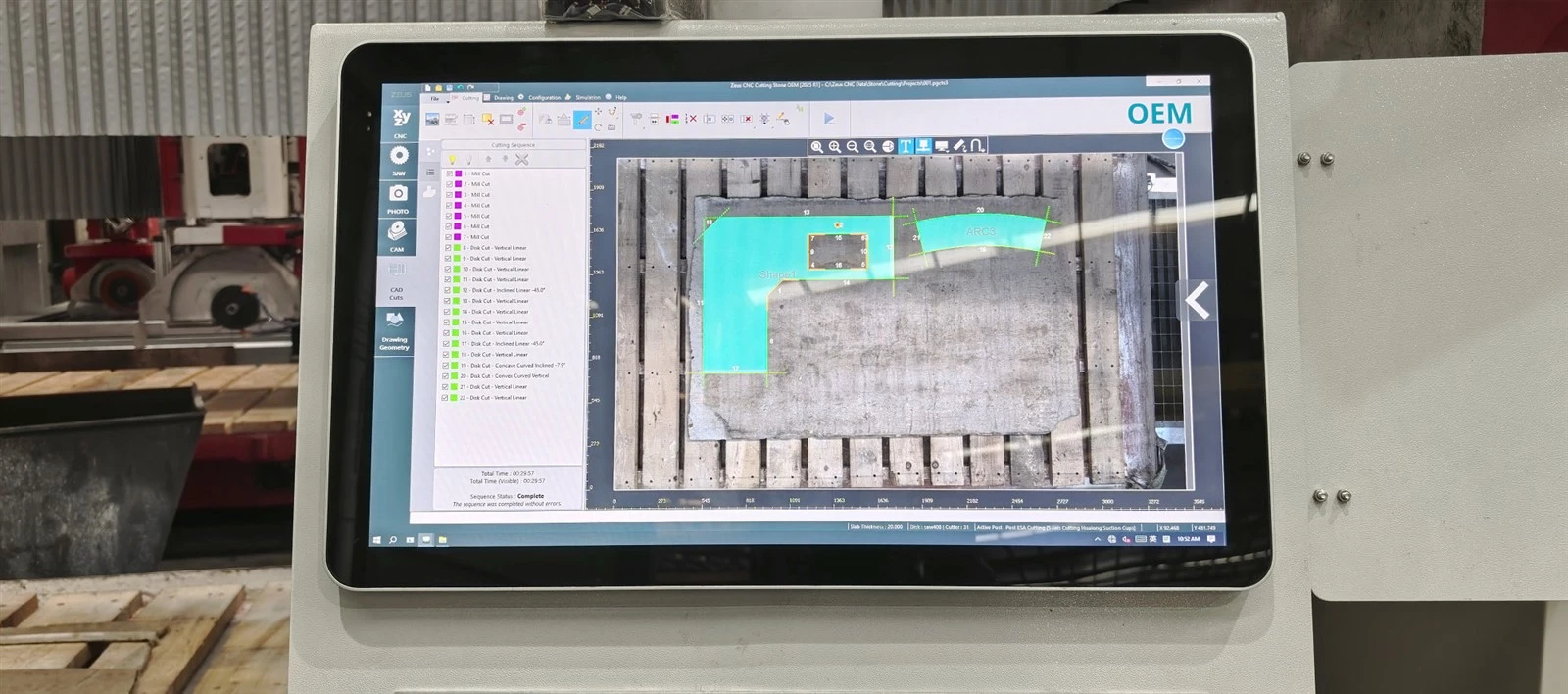

• Equipped with an original Italian ESA CNC system
• Includes Pegasus CAD/CAM software specialized for stone processing
• Features a complete set of ESA digital servo motors
• 5-Axis Interpolated Cutting
• Cutting dimensional accuracy up to ±0.1mm
• Supports miter cuts at any angle from 0° to 90°, 45° seamless chamfering, etc.
• Includes a 19-inch industrial touchscreen
• Supports DXF file import
• Remote WiFi support for commissioning and troubleshooting.





2.True 5+1 axis stone cutting machine

• A single machine capable of performing saw blade cutting, milling, drilling, engraving, and curved surface shaping.
• The "+1 axis" features an independent electric spindle engraving unit, enabling functions such as sink cutout, relief carving, European-style molding, and 3D curved surface polishing.
• Diamond saw blades (400–650mm in diameter) handle large slab cutting, irregular profiling, arc cutting, and beveling.
• Processable products include: kitchen quartz/granite countertops, bathroom vanity sinks, curved stair treads, relief-carved feature walls, and custom-shaped stone ornaments.





3.Smart Imaging + Smart Nesting + Vacuum Suction System

• Optional "Vein Match" stone pattern matching system
• A camera captures the full slab pattern, and software automatically handles nesting, pattern matching, and cutting layout optimization.
• This increases material utilization by 8%–15% and significantly reduces waste for high-value materials like marble and luxury stone.
• Standard 200kg vacuum suction lifting mechanism: automatically grips and moves finished products after processing, eliminating the need for manual lifting, reducing workplace injuries, and improving loading/unloading efficiency.
• Supports processing of full-sized slabs without the need for intermediate handling, reducing processing time per slab by 40%.





Diameter of saw blade	ø400-ø650	mm
Dimensions of working platform	3500×2100 mm	mm
Max. length of horizontal cutting	3500	mm
Max. cutting thickness	200	mm
Max. lifting stroke	500	mm
Max. lifting weight by vacuum	200	kg
Power of main motor	26.4	kw
Power of electric spindle	5.5	kw
Power of cutter frame reciprocating motor	1.6	kw
Power of crossbeam shifting motor	1.3	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	1	kw
Gross power	40	kw
Water consumption	2	m³/h
Dimensions (Length × Width × Height)	6500x3400x3700	mm
Gross weight	6500	kg





Processable materials include:

granite, marble, quartz, engineered stone, sintered stone, and engineered slabs.



Application Scenarios：

• Kitchen and Bathroom Fabrication: Kitchen islands, vanity tops, integrated undermount sink cutouts, and radiused front/back splashes;
• Architectural and Custom Shapes: Curved door surrounds, stair treads, radiused windowsills, and custom-shaped exterior stone elements;
• Decorative Customization: Stone relief carvings, 3D feature walls, artistic stone ornaments, and monument/tombstone engraving.







Target Customers

• Stone processing plants (e.g., countertop fabrication)
• High-end integrated stone processing facilities (specializing in villas, luxury countertops, and complex custom shapes)
• Small-to-medium stone factories looking to reduce equipment count while expanding into high-value, complex-shape business
• Specialized processors of high-end slabs, such as marble



Key Benefits

• Reduces investment in stone processing machinery by 1–2 units and saves workshop floor space
• Commands a 30%–80% price premium on complex shapes and vein-matching orders, creating a competitive edge over standard processing plants
• Automated nesting combined with vacuum-assisted loading/unloading boosts per-capita productivity by over 50% and lowers labor costs

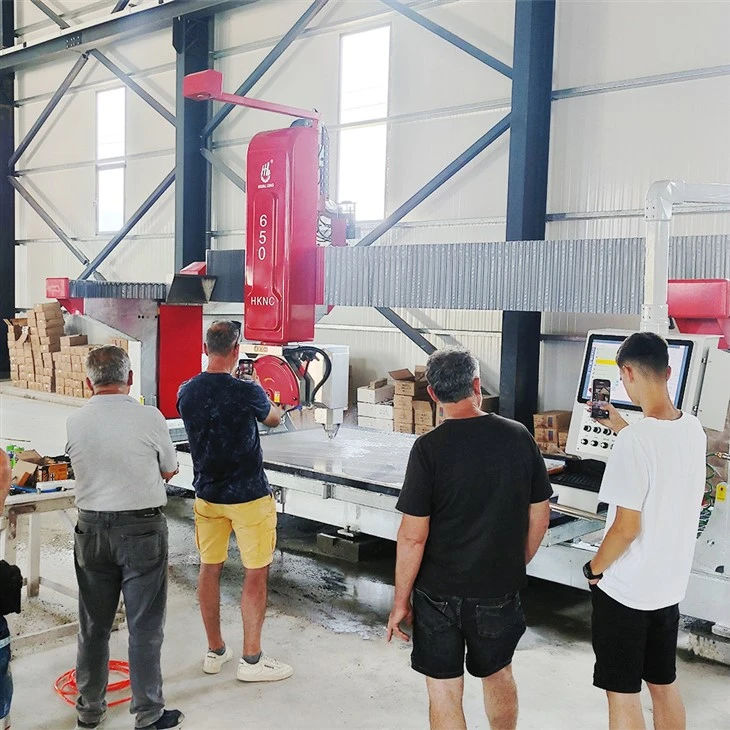

Machine operation at customer's factory





Pre-Sales Service
1: Pre-sales Enquiry & Consultation Support: Receive expert guidance and answers to all your questions before purchase.
2: Factory Visit & Inspection: Tour our manufacturing facilities to witness our quality and processes firsthand.

After-Sales Service
1: Comprehensive Machine Training: Professional installation guidance and operation training provided.
2: Overseas Engineer Support: Our engineers are available for on-site machinery servicing internationally.
3: Lifetime Technical Support& Parts: Benefit from free lifetime technical maintenance and spare parts supply.
