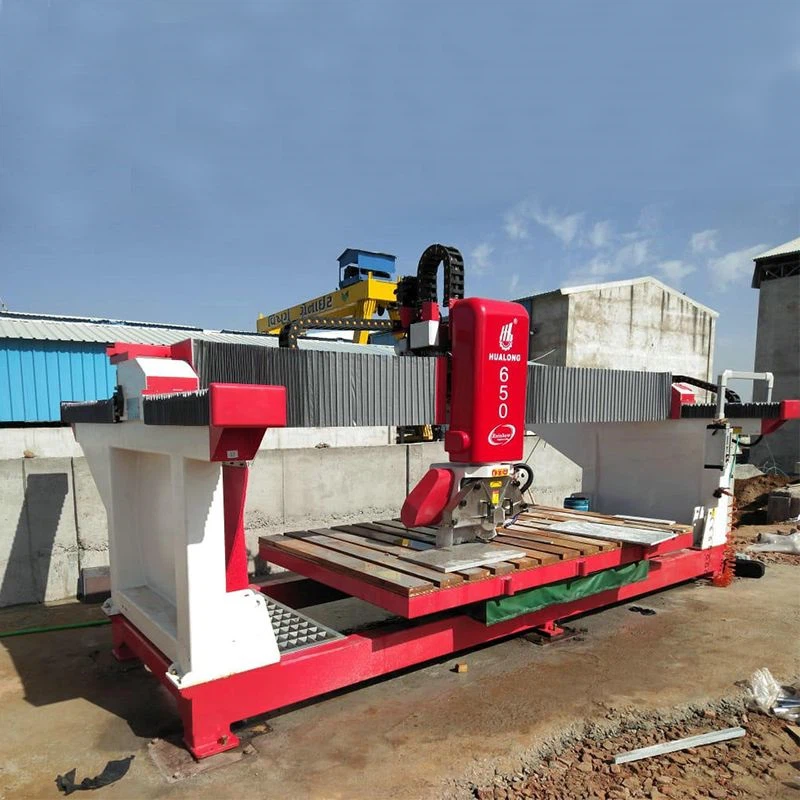

Monoblock Stone Bridge Saw
Compact,Cost-Effective Stone Cutting Solution with 45° Chamfering Function

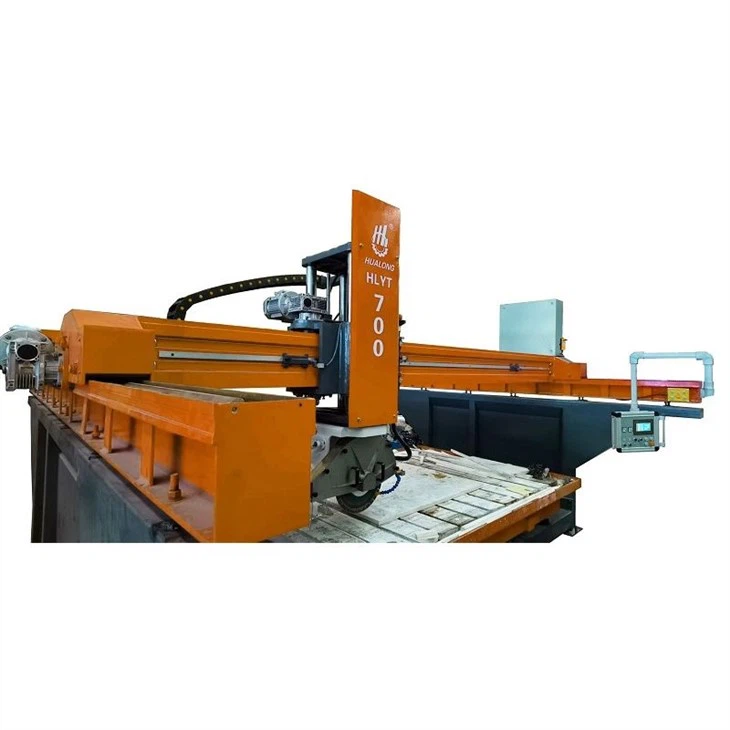

The Hualong HLYT-700 is an integrated bridge-type stone cutting machine with a 45-degree chamfering function,suitable for slab cutting.Combined with a rotary worktable,it can cut granite,marble,quartz,or other natural or artificial stone slabs into the required sizes and polygons.This is an economical,efficient,durable,and highly practical stone processing equipment.
Supports cutting, polygon processing, and 45° beveling of granite, marble, quartz stone, and various natural/artificial stones
-
Architectural Decoration: Wall panels, floor paving stone, irregularly shaped background walls
-
Kitchen and Bathroom Customization: Kitchen countertops, bathroom sink panels, L-shaped spliced panels
-
Engineering Building Materials: Dry-hanging stone, beveled stone, polygonal landscape stone
-
Customized Products: Irregularly shaped parts at any angle, spliced stone components
Application:
-
Small and medium-sized stone processing plants (a single piece of equipment can meet the needs of multiple processes, replacing multiple traditional machines)
-
Custom stone workshops (flexibly handle small-batch, multi-specification custom orders)
-
On-site processing for decoration projects (no foundation installation required, rapid deployment and production)
-
Stone trade-related processing (shorten delivery cycle, increase product added value)
Integrated steel structure design:Weighing only 6000KG and featuring a foundation-free design, the machine is easy to install and operates stably. It effectively reduces cutting vibration and improves cutting accuracy.

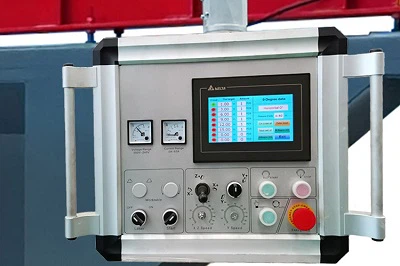

Precise positioning system: Equipped with a Panasonic PLC control system and magnetic ruler positioning, along with a Delta touchscreen, eliminating the need for G-code. It supports both manual input and image import programming modes, providing intuitive operation and precise positioning.

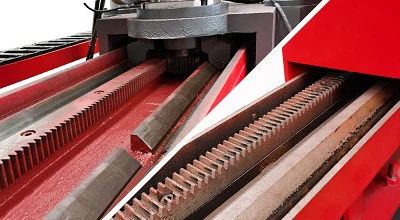

Stable transmission structure: The crossbeam and side beams utilize oil-immersed V-shaped guide rails and racks, effectively preventing dust and wear, ensuring operational accuracy, and extending the equipment's lifespan.
International brand components: Core components include Mitsubishi inverters, Panasonic PLCs, and Delta touchscreens. Reliable quality, convenient maintenance, and reduced downtime losses.
Flexible processing: The worktable can rotate freely between 0-360° with precise positioning every 45°. It supports one-button switching for automatic repeating cuts in both horizontal and vertical directions, easily achieving irregular shape processing.

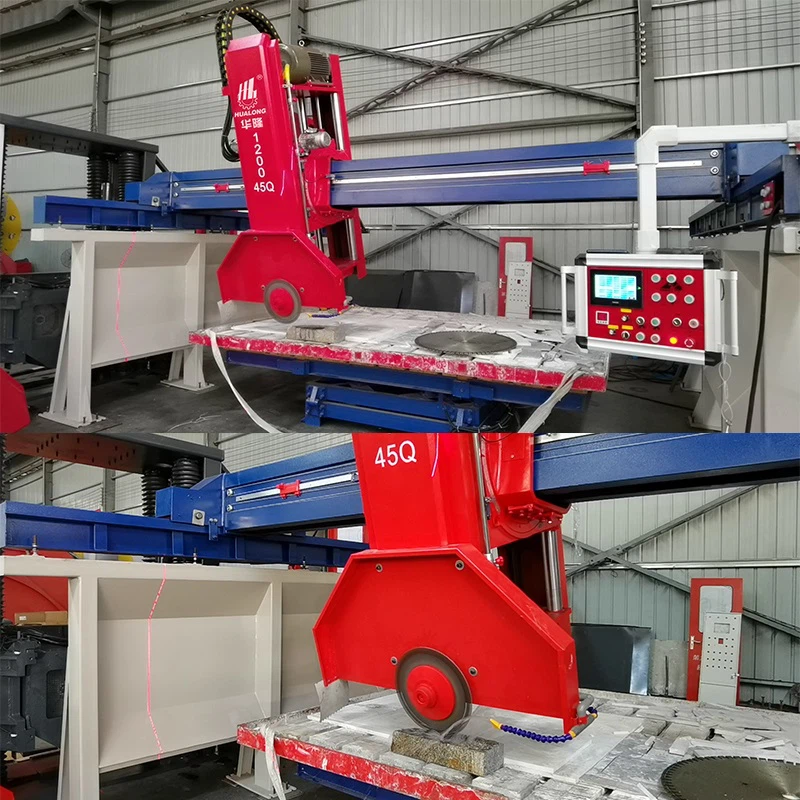

45° Chamfering and Efficient Loading: The saw blade can be tilted at 45° for chamfering cuts. The 85° tilt design of the worktable significantly reduces the difficulty of loading heavy slabs, improving operational safety.

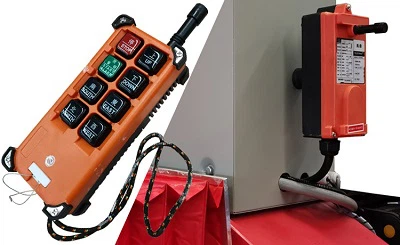

Supports Manual and Automatic Operation: A wireless handheld remote control allows operators to operate the machine even when away from the console, enhancing the flexibility of cutting operations.

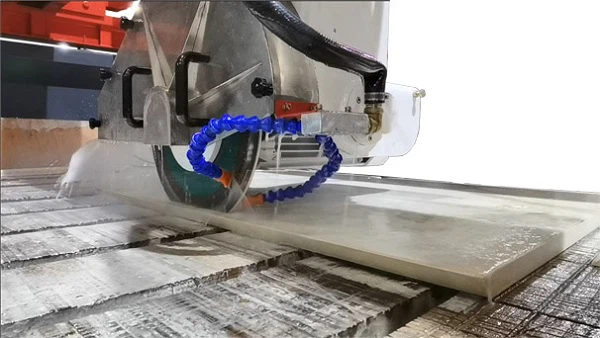

Laser Positioning Assistance: Equipped with an industrial-grade laser line marker. This equipment allows for precise alignment of slabs from the initial processing stage. This reduces material waste and improves processing accuracy. It is especially suitable for high-end stone processing.
Technical Parameters
| Control method | PLC |
| Power | 18.5KW |
| Working voltage | 380V/220V |
| Blade size | Φ400 - Φ700mm |
| X-axis working stroke | 3300mm |
| Y-axis working stroke | 2000mm |
| Z-axis working stroke | 240mm |
| A-axis rotation degree | 0°-360° |
| Cutting thickness | 180mm |
| Overall size | 6000*5000*3600mm |
| Weight | 6000KG |
What problems can it solve for customers?
1. Efficiency and Cost Savings
Efficiency Improvement: Overall processing efficiency is increased by over 40% compared to traditional manual cutting equipment. More sheet metal can be cut per unit time.
Labor Savings: Simple operation and no specialized technicians required. One person can operate and monitor the equipment, reducing the workforce by at least 2-3 people compared to traditional processing methods.
Maintenance Costs: Utilizes internationally branded components and an oil-immersed guide rail design. Low failure rate; annual maintenance costs are only 3%-5% of the total equipment price, far below the industry average.
2. Solving Production Problems
No Foundation Required: Saves on site modification costs and time. Even rented factory buildings or temporary processing points can quickly begin production.
Easy to Operate: Multi-language interface and G-code-free programming are beginner-friendly. New users can operate the machine independently after 1-2 days of training.
Stable Operation: Adopts an integrated body design and is equipped with a hydraulic stabilization system. Effectively avoids dimensional deviations in mass production, reduces rework losses, and improves sheet metal processing accuracy.
Powerful functionality: One machine can replace multiple machines for cutting, chamfering, and irregular shape processing, saving on equipment procurement costs and space occupancy.
We provide detailed consulting and support services to address customer questions, customize the best production line configuration based on the customer's actual working conditions and development needs, and arrange factory visits for customers to gain an in-depth understanding of production processes and equipment performance.
After-Sales Service
* Training on how to install and use the bridge saw.
* We have a team of engineers who can provide overseas machine repair services.
* Lifetime free technical guidance, maintenance, and spare parts supply.
