Fujian Province Hualong Machinery Co., Ltd. is one of the leading manufacturers and suppliers of stone countertop processing center in China. With abundant experience, we warmly welcome you to buy advanced stone countertop processing center for sale here from our factory. Quality products and reasonable price are available.

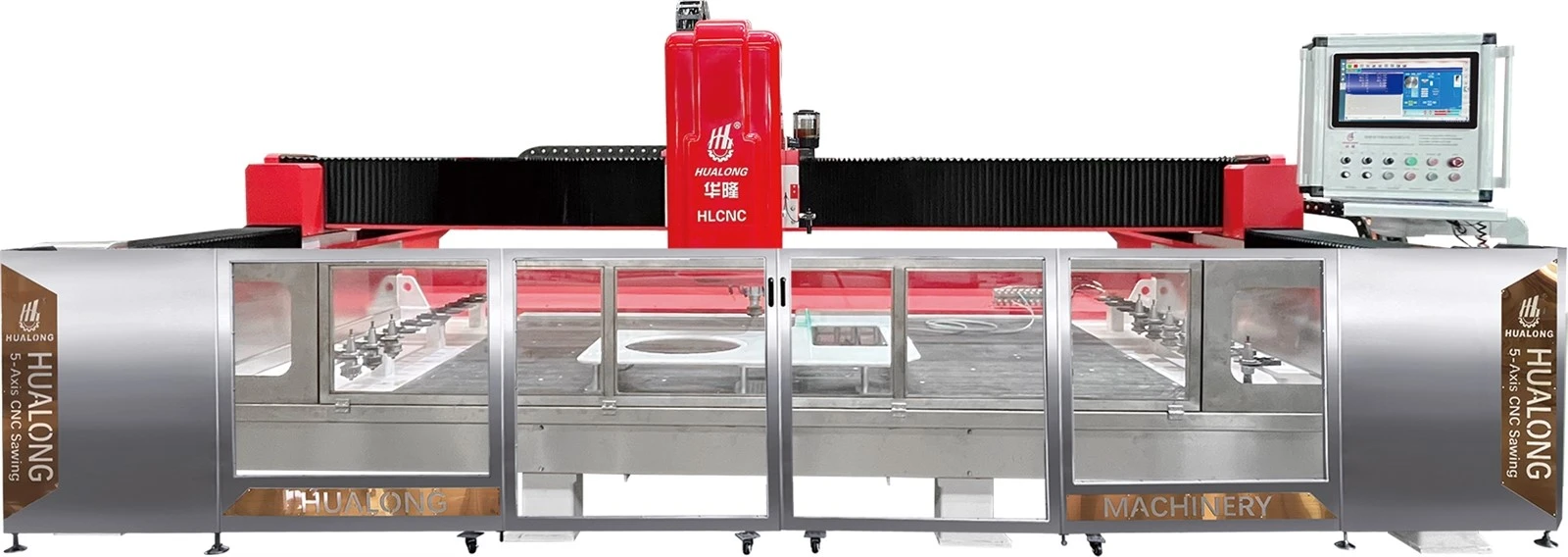

The HLCNC-3319 is a multi-functional CNC machining center specifically developed for stone countertop processing and custom stone manufacturing.The equipment employs a 3 axis linkage control system,enabling integrated processing of various processes such as polishing,milling,edge grinding,drilling,carving and contouring,allowing complex processing to be completed without relying on multiple machines.The equipment is suitable for processing various slabs of granite,marble,quartz stone,and artificial stone.The equipment also supports background wall relief carving,European-style borders,and decorative moldings,meeting the modern stone processing industry's demand for customized and diversified production.
Widely used in
Kitchen countertops
Bathroom countertops
Cabinet countertops
Bar countertops
Tabletops
Window sills
Main Features
Equipped with numerical control programming system and compatible with CAD/CAM software, these automated tools realize one-stop continuous automatic processing including slab calibration, milling, carving, honing and polishing.
Double-side tool magazine with 20 positions enables automatic tool replacement.
The cross beam and longitudinal beam are fitted with Taiwan Hiwin linear guides for movement, guaranteeing superior cutting accuracy and extended service life.
Dust removal devices are installed on X and Y axes to keep the equipment clean and lengthen its service lifespan.
Adopting 3-axis Yaskawa servo drives, the machine runs fast and efficiently. It delivers neat cutting surfaces free of jagged edges, with flat bottoms and distinct contours.
Workpieces are firmly fixed by dual securing structures of vacuum suction cups and aluminum alloy locks, preventing any tiny shifting during operation.
A USB port is configured to facilitate operators to import and export programs easily.
Fast operating speed with low running noise.
Excellent working efficiency and low production costs.
Improved Finished Product Quality
1. Produces precise, high-quality finished products.
2. Businesses save on labor costs, reduce errors, and reduce waste, resulting in significant cost savings. Safe machine operation helps reduce the risk of workplace accidents.
3. Using advanced technology and equipment, businesses can quickly produce high-quality finished products. This helps them stay competitive in the market and attract more customers.
4. We provide customer support services, including maintenance and repairs, to keep machines in optimal operating condition, ensuring continued productivity.
Detail lmages
|
|
Hand-wheel Wired to the control console, it replicates axis management, and directly controls movement speed and position. |
|
|
Laser reticule apparatus Startup origin point calibration aid |
|
|
Self Lubrication System The automatic oil feeding and lubrication system simplifies routine maintenance and cuts down material waste. |
|
|
Vacuum Pump 7.5kW vacuum pump provides strong suction to fix stones on the worktable. |
Customer Spot
Daily Stone Countertop Processing Center Maintenance
1. Check the spindle tooling mechanism for proper operation. Click the manual tooling button to verify that the tool can be released and clamped properly.
2. Clean the toolholder taper before leaving get off work each day.
3. The tool gripper can be removed and cleaned every two weeks.
4. Use a BT40 spindle cleaning rod to clean the spindle taper hole inside the spindle once a week.
5. Check the hydraulic oil level in the tooling cylinder to ensure the oil level in the oil cup is within the upper limit and not below the lower limit.
6. Use only clean water for internal drainage to prevent damage to the high-speed rotary joint seal and extend its service life. If water leaks from the high-speed rotary joint drain hole, replace the high-speed rotary joint. Avoid leaks from the high-speed rotary joint and damage to the machine spindle structure.
7. Regularly check the spindle belt for looseness.
8. Clean dirt from the toolholder before and after starting the machine each day. Prevent dust from entering the spindle mechanism during tool changes.
