Bridge Stone Cutting Machine

Fujian Province Hualong Machinery Co., Ltd. is one of the leading manufacturers and suppliers of bridge stone cutting machine in China. With abundant experience, we warmly welcome you to buy advanced bridge stone cutting machine for sale here from our factory. Quality products and reasonable price are available.

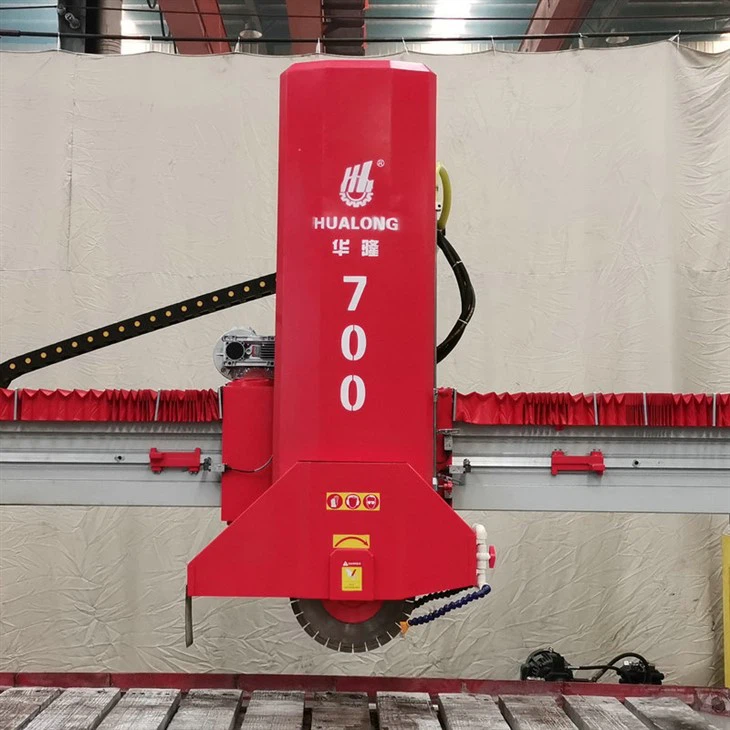

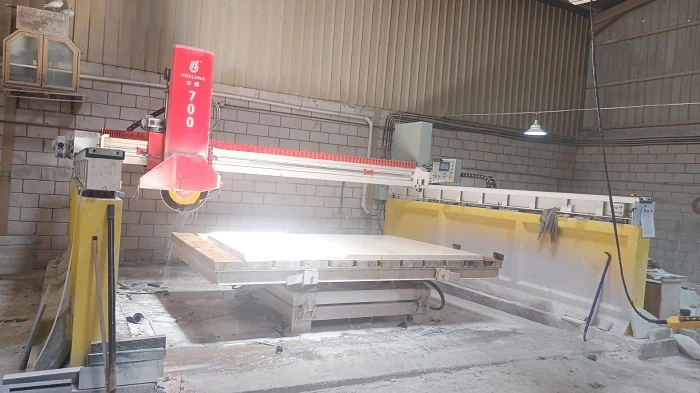

The HLSQ-700 infrared automatic bridge stone slab cutting machine is a core piece of equipment for large slab processing in stone processing plants. This machine can be used for edge cutting and length cutting of granite and marble slabs.

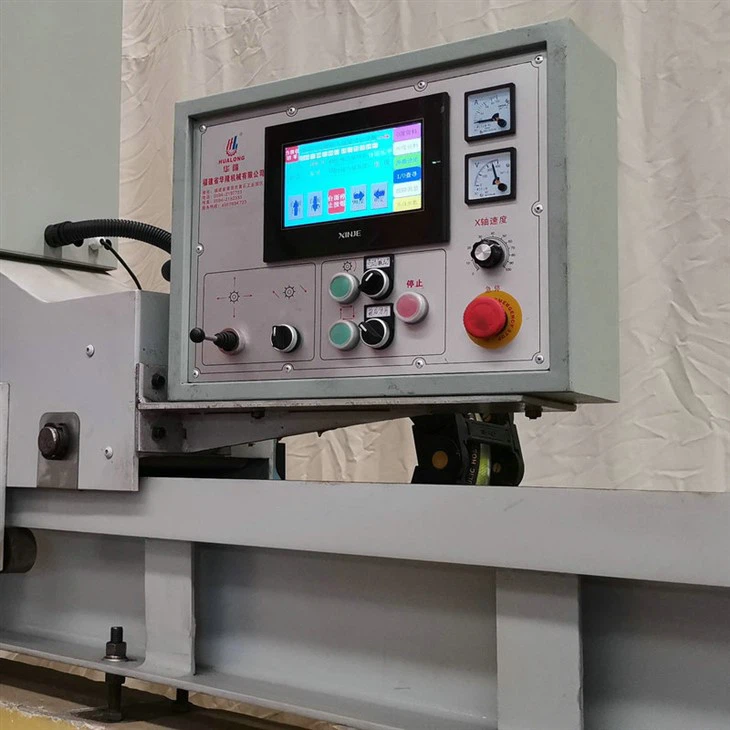

The equipment adopts a PLC control system with infrared positioning, ensuring stable operation, high cutting precision, and improved processing efficiency during slab processing.

The machine weighs 8500kg and can accommodate saw blades with diameters from 400 to 700mm. The maximum processing size is 3200×2000×220mm.

The worktable supports 0-85° tilting for easy loading and unloading of large slabs. The rotating worktable can rotate 45°, 90°, and 360°, meeting customers' multi-angle cutting needs. The machine supports optional cantilever cranes and chamfering heads, enabling integrated hoisting, cutting, and chamfering operations.

This model is suitable for cutting standard slabs, countertops, and stair slabs, making it an essential cutting tool for stone processing enterprises.

When should you choose the HLSQ-700 Infrared Automatic Bridge Edge Cutting Machine?

If you meet most of the following conditions:

1: The raw material is pre-cut marble or granite slabs/large slabs, not raw blocks.

2: You frequently process large slabs with a maximum thickness of 220mm. You frequently process 18-20cm thick slabs, stair slabs, and thick countertops.

3: You frequently hoist 3-meter-long slabs and want to use an 85° tilting worktable to reduce the difficulty of loading large slabs and minimize damage.

4: You frequently need to perform 45° corner splicing and multi-angle beveling, and require a rotating worktable for multi-angle processing.

5: You want a chamfering function to reduce secondary processing steps and improve processing efficiency.

85° Tilting Worktable for Safer and More Effortless Large Slab Loading:
The worktable can tilt 85°, reducing the risk of damage from bumps and knocks when hoisting large slabs, while significantly improving loading efficiency.

Two Rotatable Worktables to Choose From for More Flexible Multi-Angle Cutting:
A 0-90° right-angle rotation or a 0-360° rotation at a 45° setting helps you easily complete 45° corner splicing and diagonal beveling. No need to repeatedly move the slabs throughout the process.

Infrared Positioning for High Cutting Precision:
Equipped with infrared positioning, this machine automates cutting and movement, ensuring precise cutting dimensions and a smooth cut surface, reducing human error.

Heavy-Duty Machine Body:
Weighing in at 8500kg, the machine's stable structure guarantees cutting precision. Maximum processing thickness 220mm, capable of cutting 18-20cm granite and marble slabs.

Multiple optional functions:
Equipped with a chamfering and cutting function, it can chamfer and cut the edges of the boards, eliminating the need for a secondary edge grinding process. A Column Jib Crane can directly lift and transport boards in the workshop, saving labor and improving efficiency.

Q1: What are the requirements for the workshop floor when installing this machine?

A: The machine weighs 8500kg. The workshop floor needs to be a hardened concrete floor to ensure load-bearing capacity. Sufficient operating and maintenance space should be reserved where the machine is placed. It is recommended to leave a passageway of at least 1.5 meters around the equipment.

Q2: What external facilities are required for the equipment?

A: A 380V industrial three-phase power supply is required (voltage can be customized). The water supply system consumes 4m³ per hour. It is recommended to configure a water circulation cooling system and ensure proper wastewater sedimentation treatment.

Q3: Is the saw blade standard equipment? How often should it be replaced?

A: The saw blade is a wear part. The lifespan of the saw blade depends on the hardness of the stone, the cutting thickness, and the feed speed. Wear and tear will be higher when processing granite than marble. The factory can replace the saw blade according to the actual processing conditions.

Q4: What is the maximum weight of the slab that the 85-degree tilting workbench can support? A: The workbench is compatible with a maximum processing size of 3200×2000mm boards. Overloading with excessively heavy boards is not recommended. Overloading will accelerate wear on the workbench hinges and hydraulic components, reducing the machine's lifespan.

Q5: What are the common reasons for dimensional deviations after cutting?

A: Common causes include worn and loose saw blades, ground subsidence, dust and impurities on the guide rails, and improper placement of the boards. Regular guide rail maintenance and periodic checks of saw blade tightness will ensure cutting accuracy.

Q6: Can it process sintered stone?

A: Yes, it can process sintered stone. It is recommended to use a dedicated sintered stone saw blade and reduce the machine's feed speed to avoid chipping or breakage.

Q7: What is the warranty period for the entire machine, and what is not covered by the warranty?

A: The entire machine comes with a standard warranty.damage caused by human error, consumable parts (saw blades, seals, hoses, etc.), and normal wear are not covered by the warranty.
